Marine Steel Products

Gratings / Stair Treads

Available from stock

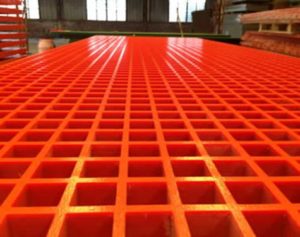

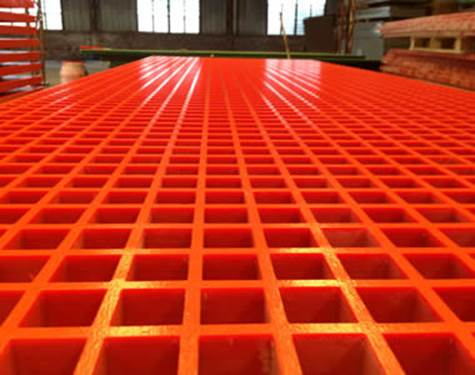

Glass Reinforced Plastic Grating (GRP)

We supply from stock standard sizes in various colors
3007 x 1007 x 38
3660 x 1220 x 38

If you need customized sizes we can cut to size.

Weld Pressed Gratings, Galvanized steel PAD Grating (Offshore)

Weld Pressed Gratings

We supply from stock standard sizes
6000 x 1000 x 100 x 30 x 5 x 30
6000 x 600 x 100 x 30 x 5 x 30

If you need customized sizes we can cut to size.

Galvanized steel PA Grating (Anti-slip)

Galvanized-steel-PA-Grating-(Anti-slip)

We supply from stock standard sizes
400 x 600 x 30 x 2
400 x 700 x 30 x 2
500 x 700 x 30 x 2
400 x 800 x 30 x 2
500 x 800 x 30 x 2
600 x 800 x 30 x 2
500 x 900 x 30 x 2
600 x 900 x 30 x 2
500 x 1000 x 30 x 2
600 x 1000 x 30 x 2
700 x 1000 x 30 x 2
800 x 1000 x 30 x 2
900 x 1000 x 30 x 2
1000 x 1000 x 30 x 2
1200 x 1000 x 30 x 2
1500 x 1000 x 30 x 3

If you need customized sizes we can cut to size.

Galvanized steel LP Grating (Weld Pressed)

Galvanized-steel-LP-Grating-(Weld-Pressed)

We supply from stock standard sizes
400 x 600 x 30 x 2
400 x 700 x 30 x 2
500 x 700 x 30 x 2
400 x 800 x 30 x 2
500 x 800 x 30 x 2
600 x 800 x 30 x 2
500 x 900 x 30 x 2
600 x 900 x 30 x 2
500 x 1000 x 30 x 2
600 x 1000 x 30 x 2
700 x 1000 x 30 x 2
800 x 1000 x 30 x 2
900 x 1000 x 30 x 2
1000 x 1000 x 30 x 2
1200 x 1000 x 30 x 2
1500 x 1000 x 30 x 3

If you need customized sizes we can cut to size.

Galvanized steel stair treads

Galvanized-steel-stair-treads

We supply from stock standard sizes
500 x 200
600 x 200
700 x 200
800 x 200
900 x 200
1000 x 200

If you need customized sizes we can cut to size.

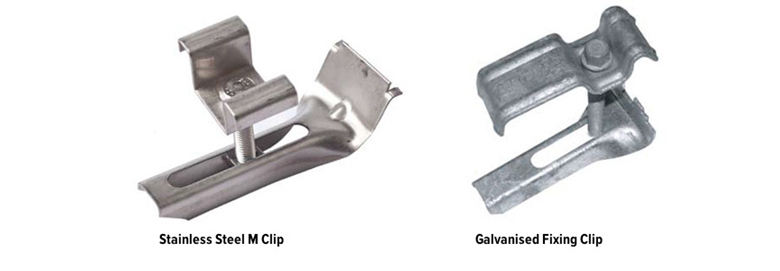

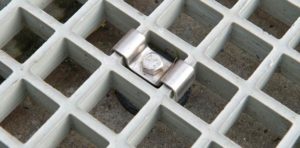

Fasteners (clips)

Galvanized clips for steel and GRP Gratings
Stainless steel clips for GRP gratings

Fasteners-(clips)

Please send your inquiries and learn our competitive prices and great service. Class certification and cut to size possible.

Tubes

tubes

We can supply processed tubes, such as bending, sand blasted and primed, galvanized and cut to size.

If you need a dimension that’s not in our program, please contact us.

Type	Size
DIN Welded Black Tube	1/2″ trough 10″
DIN Welded Galvanised Tube	1/2″ trough 10″
ASTM Seamless Tube Black	1/2″ trough 12″ Sch40/80
ASTM Seamless Tube Galvanised	1/2″ trough 4″ Sch 40/80
Stainless Steel Tube 304L/316L	1/2″ trough 10″ Sch10/40
Stainless Steel Tubing 304L/316L	6mm trough 30 mm
Copper tube Annealed Seamless	6mm trough 15 mm
Copper tube Annealed Seamless Imp	1/4″ trough 3/4″
Copper tube seamless on lenght	6mm trough 54mm
Steel Hydrailic Tube	4mm trough 50mm

Flanges (Steel/Stainless Steel)

flanges

If you need custom made flanges, we can help you through the use of a machine bench.

Are you looking for flanges that are not in our program? Please contact us.

Type	Size
Welding Flange Flat face JIS 5K	1/2″ trough 20″
Welding Flange Flat face JIS 10K	1/2″ trough 20″
Welding Flange Flat face DIN 2573 PN6	1/2″ trough 20″
Welding Flange Flat face DIN 2576 PN10-16	1/2″ trough 20″
Welding Neck Flange DIN2631 PN6	1/2″ trough 20″
Welding Neck Flange DIN2633 PN16	1/2″ trough 20″
Slip On Flange ASTM	1/2″ trough 20″
Welding Neck Flange ASTM	1/2″ trough 20″

Plates

plates Plates can be delivered in a variety of sizes and thicknesses through cutting the plates. This can be done by of plasma, laser, or water. This goes for steel, stainless steel, copper and aluminum.

Also, the plates can also be bent as required or rolled.

So you’re looking for a special plate? Please contact us.

Type	Size
Steel Plate S235JRG	0,05 mm trough 30 mm
Steel Plate Grade A / S355 / EH 36	All kind of dimensions
Stainless Steel plate 304L/316L	0,05 mm trough 10mm
Aluminium Plate	0,05 mm trough 5 mm
Copper Plate	0,05 mm trough 3mm
Brass plate	0,05mm trough 3mm
Zinc Plate	12mm trough 30mm

Bars

bars Bars can be supplied in custom-made lengths, Are you looking for round square or hexagon? It can also be bent and must be preserved.

Are you looking for special alloys? Please contact us.

Type	Size
Steel Round Bar Hot rolled	6mm trough 100mm
Steel round bar Cold finished	6mm trough 100mm
Stainless steel Round Bar 304L/316L	6mm trough 100mm
Brass Round Bar	6mm trough 100mm
Bronze Round Bar	10mm trough 100mm
Copper Round Bar	10mm trough 50mm
Aluminium Round Bar	10mm trough 100mm
Steel Square Bar Hot Rolled	10mm trough 50mm
Steel Square Bar Cold Finished	10mm trough 50mm
Steel Hexagon Cold Finished	10mm trough 56mm
Stainless Steel Hexagon 304L	10mm trough 46mm
Brass Hexagon	10mm trough 46mm

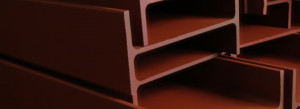

Profiles

There are several profiles, beams, hollow sections, Angles and T-profiles. These materials can be processed for you. Conservation, cut to size, drilling and rolling.

This is all according to your specification or drawing.

If you have something to calculate, please contact us.

Type	Size
Steel flat Hot Rolled S235	20 trough 300mm
Steel Angle Hot Rolled S235	25mm trough 150mm
Steel T-Profile Hot Rolled S235	30 mm trough 100mm
Steel UNP Hot Rolled S235	50mm trough 300mm
Steel IPE Hot Rolled S235	80mm trough 300mm
Steel HE-A Hot Rolled S235	100mm trough 300mm
Steel HE-B Hot Rolled S235	100mm trough 300mm

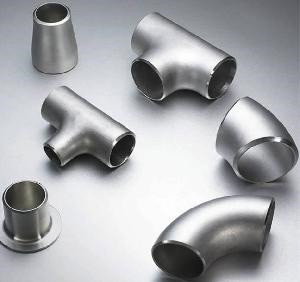

Fittings

In our program, we have various kinds of fittings. Welding fittings in steel or stainless steel. Compression fittings in steel, stainless steel or brass.

If you are looking for a size that’s not in our program? Please contact us.

Type	Size
Steel Welding Elbow DIN 45º/90º	1/2″ trough 12″
Steel Welding Elbow ASTM 45º/90º LR	1/2″ trough 10″ Sch40/80
Steel Welding Elbow ASTM 90º SR	1/2″ trough 10″ Sch40/80
T-piece ASTM	1/2″ trough 10″ Sch40/80
T-Piece DIN	1/2″ trough 10″
Concentric Reducer ASTM	1/2″ trough 16″ Sch40/80
Concentric Reducer DIN	1/2″ trough 16″
High Pressure fittings 300#Lbs NPT	1/2″ trough 3″
Steel Hydraulic Fittings	6mm trough 40mm
Stainless Steel Hydraulic Fittings	6mm trough 25mm
Brass compression fitting	6mm trough 30mm
